4WD MiniQ Complete Kit V2.0 [DFR-ROB0050]

INTRODUCTION

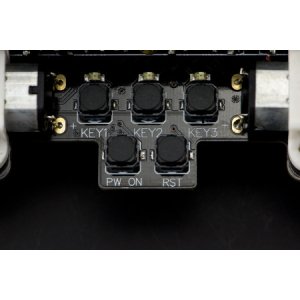

Our newly upgraded 4WD MiniQ mobile robot kit is especially designed for education/learning purposes. It comes fully assembled and all your need is a PC with Arduino IDE and 4xAA battery. This new version of MiniQ 4WD Arduino Robot Kit comes with Arduino Leonardo controller (ATmega32u4) and also integrates modules such as RGB LED, photosensitive diode, infrared trasmitters, infrared receivers, infrared line tracking sensors, light sensors, additional buttons and buzzer.

Along with this mobile robot kit, we offer 8 lessons for beginners, from entry-level to line-following, obstacle avoidance, and remote control. Users can easily grasp through the tutorial. All codings and tutorials are open and free to download.

lesson1. Get to Know Your Robot
lesson2. Control Buzzer
lesson3. Light Direction Indication
lesson4. Line_following
lesson5. RGB LED
lesson6. Obstacle Avoidance
lesson7. Encoder
lesson8. IR Remote Control


SPECIFICATION

• Controller: Atmega32U4(Arduino Leonardo)

• Power Supply: 4x AA batteries or Micro-USB

• Working Voltage: 4.5 to 6V

• Driving Mode: 4WD

• Max Speed: 79cm/s

• Size: 115x110x45mm (4.5x4.3x1.8'')

DOCUMENTS

• Wiki (4WD MiniQ Complete Kit (SKU:ROB0050))

• Sample Code Pack

• Tutorial Pack

• Miniq 4WD Schematic V2

SHIPPING LIST

• MiniQ 4WD V2.0 x1
• IR remote controller x1
• Micro USB Cable x1
